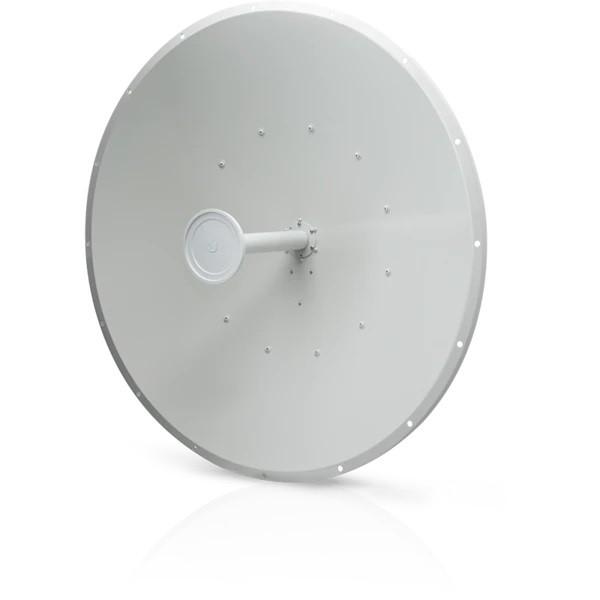

Ubiquiti AirMAX Antenna Rocket Dish 5 GHz Duplex MIMO, 34 dBi, 2x RSMA

Description

Model: RD-5G34
Dimensions*: 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57″)
Weight**:  13.5 kg (29.76 lb)
Frequency Range: 4.9 – 5.8 GHz
Gain:
4.9 GHz – 30 dBi
5 – 5.8 GHz – 34 dBi
HPOL Beamwidth: 3° (3 dB)
VPOL Beamwidth: 3° (3 dB)
F/B Ratio: 42 dB
Max. VSWR: 1.4:1
Wind Loading: 1,779 N @ 200 km/h (400 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
